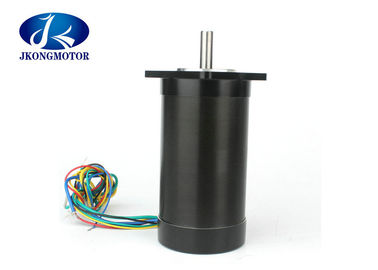

| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JK57BLS005 |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US $10 - US $16 |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
| Payment Terms: | T/T , paypal , Western Union, L/C |
| Supply Ability: | 30000PCS/MONTH |
| Type: | Brushless Dc Motor | Speed(RPM): | 4000rpm |
|---|---|---|---|
| Efficiency: | IE 1 | Shaft Shape: | Round Shaft Or D Shaft |
| Number Of Phase: | 3 | Rated Torque: | 0.055N.m |
| MOQ: | 10pcs | ||
| Highlight: | brushless dc electric motor,micro brushless dc motor |
||
| Model | |||
| Specification | Unit | JK57BLS005 | JK57BLS01 |
| Number Of Phase | Phase | 3 | |
| Number Of Poles | Poles | 4 | |
| Rated Voltage | VDC | 36 | |
| Rated Speed | Rpm | 4000 | |
| Rated Torque | N.m | 0.055 | 0.11 |
| Rated Current | Amps | 1.2 | 2 |
| Rated Power | W | 23 | 46 |
| Peak Torque | N.m | 0.16 | 0.33 |
| Peak Current | Amps | 3.5 | 6.8 |
| Back E.M.F | V/Krpm | 7.8 | 7.7 |
| Torque Constant | N.m/A | 0.074 | 0.073 |
| Rotor Inertia | g.c㎡ | 30 | 75 |
| Body Length | mm | 37 | 47 |
| Weight | Kg | 0.33 | 0.44 |
| Sensor | Honeywell | ||
| Insulation Class | B | ||
| Degree of Protection | IP30 | ||
| Storage Temperature | -25～+70℃ | ||
| Operating Temperature | -15～+50℃ | ||
| Working Humidity | 85% or under 85% RH(non condensing) | ||
| Working Environment | outdoor(no direct sunlight),Non-corrosive Gas, Non-inflammable gas, No oil fog, No dust |
||
| Altitude | 1000m or under 1000m | ||
If you need a gearbox, pls feel free to contact me.
Gearbox Specification:
| Reduction ratio | 3.6 | 4.3 | 13 | 15 | 18 | 23 | 47 | 55 | 65 | 77 | 96 | 121 |
| Number of geartrains | 1 | 2 | 3 | |||||||||
| Transmission efficiency | 90% | 81% | 73% | |||||||||
| Rated tolerance torque | 3 N.m | 12 N.m | 24 N.m | |||||||||
| Max momentary tolerance torque | 9 N.m | 36 N.m | 72 N.m | |||||||||
| Max radial load(12mm form flange) | ≤250N | |||||||||||
| Max shaft axial load | ≤100N | |||||||||||
| L2 length(mm) | 38 | 49.5 | 61 | |||||||||
Our Services:
We aslo supply Stepper motor Kits, linear stepper motor, Dc motor, Brake stepper motor, Stepper motor with Encoder, Flexible Coupling, Pully, Power supply, Breakout Board and so on..
