| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JK42BLS03-06IE |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US$25~US$48 |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
| Payment Terms: | T/T , paypal , Western Union, L/C |
| Supply Ability: | 100000pcs/month |
| Shaft: | Diameter 5mm | Poles: | 8 |
|---|---|---|---|
| Rated Voltage: | 12V - 24V | Rated Speed: | 2000rpm - 5000rpm |
| Rated Power: | 26W - 105W | Rated Current: | 1.8A - 6.3A |
| MOQ: | 10pcs | ||
| Highlight: | bldc motor,brushless dc electric motor |
||

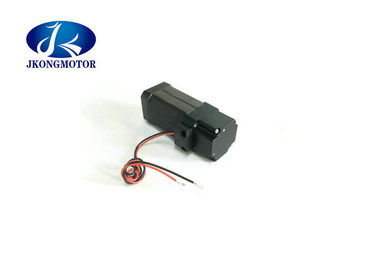

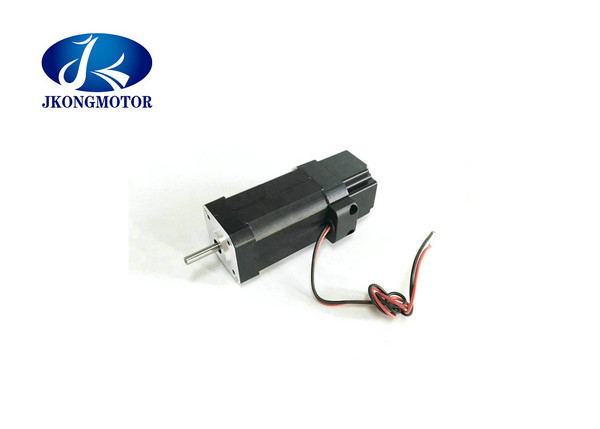

24V 3000RPM Brushless DC Motor Can With Integrated Controller
1. Application of brushless 3 phase dc motor
(Stepper motor, electrical motor,brake motor,motor driver,gear motor,bldc motor,brushless motor)
Textile machinery, engraving machine
Security, 4g antenna, solar energy
Medical equipment, industrial automation
Automobile, office automation
Printing equipment, advertising equipment etc.
2. Genaral Specification of NEMA17 brushless dc motor
| Item | Specification |
| Winding type | Delta |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm＠450g |
| End play | 0.08mm＠450g |
| Max.radial force | 28N ＠20mm form the flange |
| Max.axial force | 10N |
| Insulation class | Class B |
| Dielectric strength | 500VDC for one minute |
| Insulation resistance | 100MΩ Min.,500VDC |
3. Electrical Specification of high speed brushless dc motor:
| Model | |||||
| Specification | Unit | JK42BLS01 | JK42BLS02 | JK42BLS03 | JK42BLS04 |
| Number Of Phase | Phase | 3 | |||
| Number Of Poles | Poles | 8 | |||
| Rated Voltage | VDC | 24 | |||
| Rated Speed | Rpm | 4000 | |||
| Rated Torque | N.m | 0.0625 | 0.125 | 0.185 | 0.25 |
| Rated Current | Amps | 1.8 | 3.3 | 4.8 | 6.3 |
| Rated Power | W | 26 | 52.5 | 77.5 | 105 |
| Peak Torque | N.m | 0.19 | 0.38 | 0.56 | 0.75 |
| Peak Current | Amps | 5.4 | 10.6 | 15.5 | 20 |
| Back E.M.F | V/Krpm | 4.1 | 4.2 | 4.3 | 4.3 |
| Torque Constant | N.m/A | 0.039 | 0.04 | 0.041 | 0.041 |
| Rotor Inertia | g.c㎡ | 24 | 48 | 72 | 96 |
| Body Length | mm | 41 | 61 | 81 | 100 |
| Weight | Kg | 0.3 | 0.45 | 0.65 | 0.8 |
| Sensor | Honeywell | ||||
| Insulation Class | B | ||||
| Degree of Protection | IP30 | ||||
| Storage Temperature | -25～+70℃ | ||||
| Operating Temperature | -15～+50℃ | ||||
| Working Humidity | 85% or under 85% RH(non condensing) | ||||
| Working Environment | outdoor(no direct sunlight),Non-corrosive Gas, Non-inflammable gas, No oil fog, No dust |
||||
| Altitude | 1000m or under 1000m | ||||
4. Dimensions of brushless dc motor with integrated controller: (Unit=mm)
