| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JK80BLS01-16IE |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US$49~US$55 |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
| Payment Terms: | T/T , paypal , Western Union, L/C |
| Supply Ability: | 100000pcs/month |
| Nema: | 80mm Round Bldc Motor | Holding Torque: | 0.28N.m |
|---|---|---|---|
| Motor Length: | 91.5mm | Number Of Phase: | 3phase |
| Number Of Poles: | 8 | Rated Voltage: | 24v |
| Rated Speed: | 2500rpm | Rated Power: | 60w |
| Degree Of Protection: | IP30 | MOQ: | 10pcs |
| Highlight: | bldc gear motor with controller,2500rpm bldc gear motor,80mm bldc brushless motor |
||
80mm round 0.28N.m 2500rpm option with controller integrated bldc motors
An integrated low-speed and large-torque permanent magnet brushless DC torque motor, belonging to the technical field of low-voltage, low-speed and large-torque industrial motor applications. It includes position detection magnetic rings, support bearings, motor stators, motor rotors, hollow motor shafts, planetary gears, Outer ring gear, central sun gear.
It is characterized in that the central sun gear of the reducer is press-fitted and connected with the hollow motor shaft, and the central sun gear is directly driven to drive the planetary gear and the outer ring gear to perform proportional reduction and increase torque operation; The motor and the reducer are connected by a support bearing, and the reducer and the motor are made into an integrated machine; the hall signal board, the annular aluminum plate, and the position detection magnetic ring form the motor position signal acquisition part.
1.Production description:
| Brand Name: | Jkongmtor | Product Name: |
Bldc motor with integrated driver |
| Model Name: | JK80BLS01-16IE | Number of Poles: | 4 |
| Resistance/ Phase: | 0.68ohms | Nominal Voltage: | 24V |
| Speed: | 2500 rpm | Current: | 0.8A |
| Rated Torque: | 0.28N.m | Rated Speed: | 1950 rpm |
| Output Power: | 60w | Torque Constant: | 0.09N.m/A |
| Back EMF constant: | 9.6v/krpm | Insulation Class: | B |
| Size: | 80x80mm | Body Length: | 91.5mm |
| Model | |||||
| Specification | Unit | JK80BLS01 | JK80BLS02 | JK80BLS03 | JK80BLS04 |
| Number Of Phase | Phase | 3 | |||
| Number Of Poles | Poles | 8 | |||
| Rated Voltage | VDC | 48 | |||
| Rated Speed | Rpm | 3000 | |||
| Rated Torque | N.m | 0.35 | 0.7 | 1.05 | 1.4 |
| Rated Current | Amps | 3 | 5.5 | 8 | 10.5 |
| Rated Power | W | 110 | 220 | 330 | 440 |
| Peak Torque | N.m | 1.05 | 2.1 | 3.15 | 4.2 |
| Peak Current | Amps | 9 | 16.5 | 24 | 31.5 |
| Back E.M.F | V/Krpm | 13.5 | 13.3 | 13.1 | 13 |
| Torque Constant | N.m/A | 0.13 | 0.127 | 0.126 | 0.124 |
| Rotor Inertia | g.c㎡ | 210 | 420 | 630 | 840 |
| Body Length | mm | 78 | 98 | 118 | 138 |
| Weight | Kg | 1.4 | 2 | 2.6 | 3.2 |
| Sensor | Honeywell | ||||
| Insulation Class | B | ||||
| Degree of Protection | IP30 | ||||
| Storage Temperature | -25～+70℃ | ||||
| Operating Temperature | -15～+50℃ | ||||
| Working Humidity | 85% or under 85% RH(non condensing) | ||||
| Working Environment | outdoor(no direct sunlight),Non-corrosive Gas, Non-inflammable gas, No oil fog, No dust |
||||
| Altitude | 1000m or under 1000m | ||||

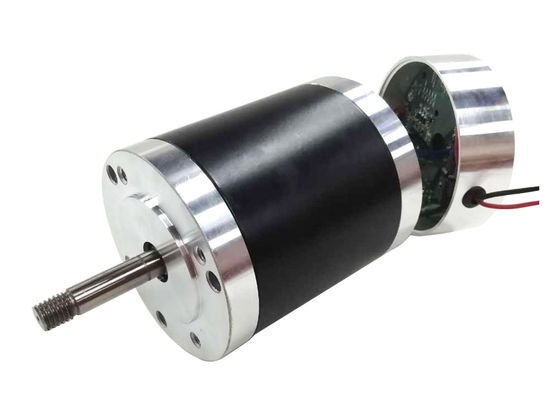

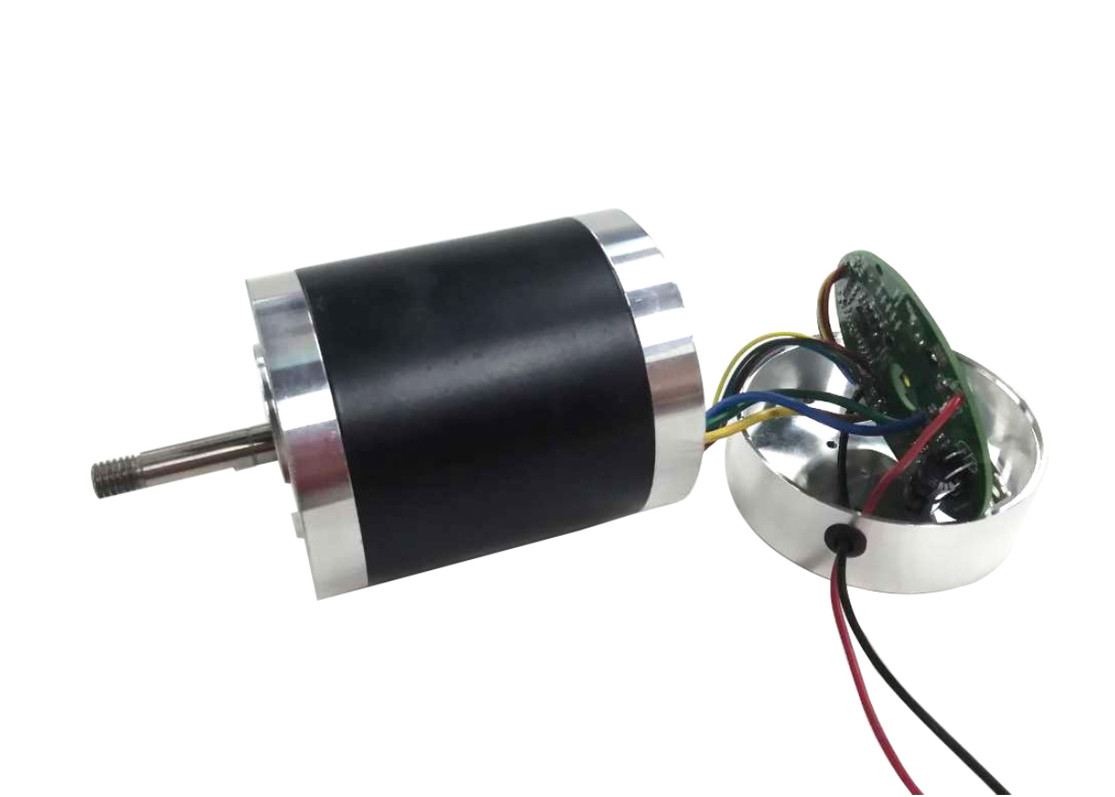

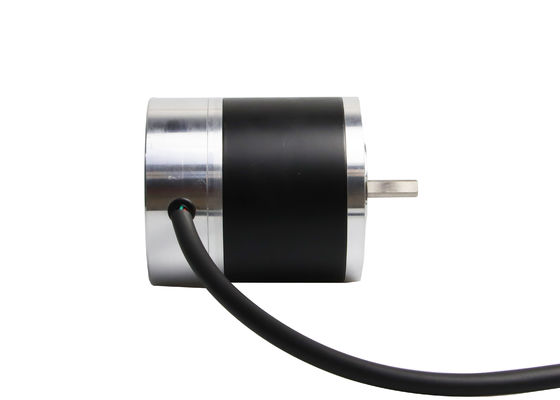

2.Product photos:
Applications Of brushless dc motor:
Our products are widely used in
