| Shaft: | Single | Rated Voltage: | 24V |
|---|---|---|---|
| Rated Speed: | 1300Rpm | Rated Power: | 15W |
| Rated Torque: | 0.11N.m | Rated Current: | 0.2A |
| Body Length: | 76.5mm | Type: | Brushless DC Motor |
| Commutation: | Brushless | Back EMF Constant:: | 11.4v/krpm |

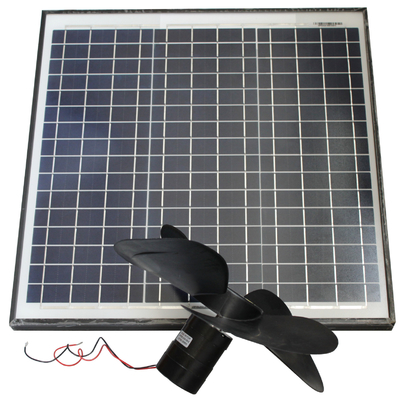

| Name: | Solar Powered Exhaust Fan | Model: | Solar Waterproof Solar Powered Fan Kit Pro |
| MOQ: | 10pcs | ||
| Highlight: | 57mm BLDC fan motor,solar powered BLDC fan motor,3000rpm BLDC nema 23motor |
||

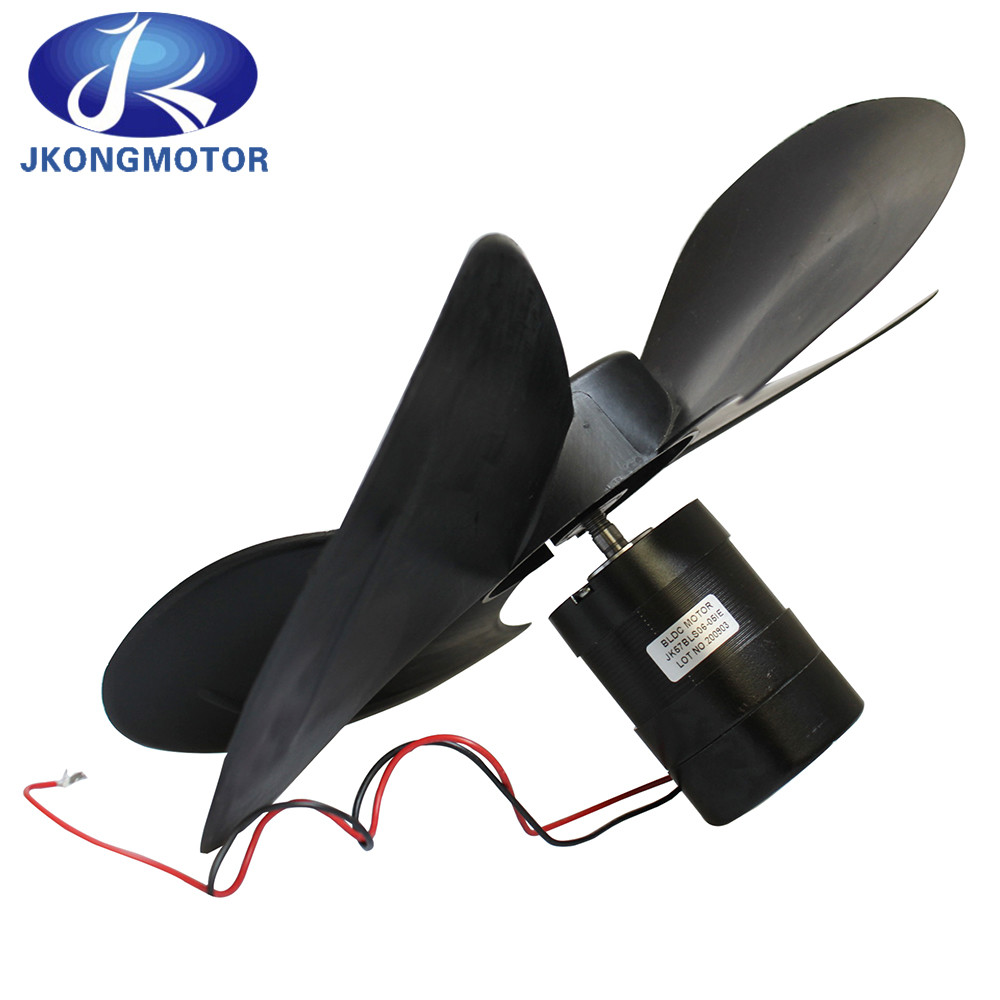

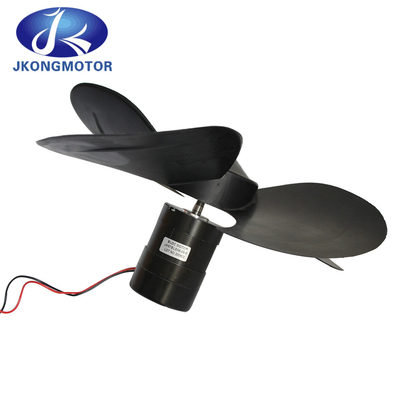

Brushless 3 Phase Dc Motor NEMA23 24v 1300rpm For Solar Power Fan
1. Descrition of NEMA23 BLDC motor
A brushless DC electric motor (BLDC motor or BL motor), also known as an electronically commutated motor
(ECM or EC motor) or synchronous DC motor, is a synchronous motor using a direct current (DC) electric power supply.
2. Genaral Specification of brushless dc motor
|
rand Name:
|
Jkongmtor
|
Product Name:
|
Bldc motor with integrated driver
|
|
Model Name:
|
JK57BLS06-05IE
|
Number of Poles:
|
4
|
|
Resistance/ Phase:
|
3.2ohms
|
Nominal Voltage:
|
24V
|
|
Speed:
|
2100rpm
|
Current:
|
0.2A
|
|
Rated Torque:
|
0.11N.m
|
Rated Speed:
|
1300rpm
|
|
Output Power:
|
15w
|
Torque Constant
|
0.11N.m/A
|
|
Back EMF constant:
|
11.4v/krpm
|
Insulation Class:
|
B
|
|
Size:
|
57x57mm
|
Body Length:
|
76.5mm
|
3. Electrical Specification of brushless
| Model | ||||||
| Specification | Unit | JK57BLS005 | JK57BLS01 | JK57BLS02 | JK57BLS03 | JK57BLS04 |
| Number Of Phase | Phase | 3 | ||||
| Number Of Poles | Poles | 4 | ||||
| Rated Voltage | VDC | 36 | ||||
| Rated Speed | Rpm | 4000 | ||||
| Rated Torque | N.m | 0.055 | 0.11 | 0.22 | 0.33 | 0.44 |
| Rated Current | Amps | 1.2 | 2 | 3.6 | 5.3 | 6.8 |
| Rated Power | W | 23 | 46 | 92 | 138 | 184 |
| Peak Torque | N.m | 0.16 | 0.33 | 0.66 | 1 | 1.32 |
| Peak Current | Amps | 3.5 | 6.8 | 11.5 | 15.5 | 20.5 |
| Back E.M.F | V/Krpm | 7.8 | 7.7 | 7.4 | 7.3 | 7.1 |
| Torque Constant | N.m/A | 0.074 | 0.073 | 0.07 | 0.07 | 0.068 |
| Rotor Inertia | g.c㎡ | 30 | 75 | 119 | 173 | 230 |
| Body Length | mm | 37 | 47 | 67 | 87 | 107 |
| Weight | Kg | 0.33 | 0.44 | 0.75 | 1 | 1.25 |
| Sensor | Honeywell | |||||
| Insulation Class | B | |||||
| Degree of Protection | IP30 | |||||
| Storage Temperature | -25～+70℃ | |||||
| Operating Temperature | -15～+50℃ | |||||
| Working Humidity | 85% or under 85% RH(non condensing) | |||||
| Working Environment | outdoor(no direct sunlight),Non-corrosive Gas, Non-inflammable gas, No oil fog, No dust |
|||||
| Altitude | 1000m or under 1000m | |||||
Matching Stepper motor Driver: JKBLS120 JKBLS300
4. Dimensions: (Unit=mm)
