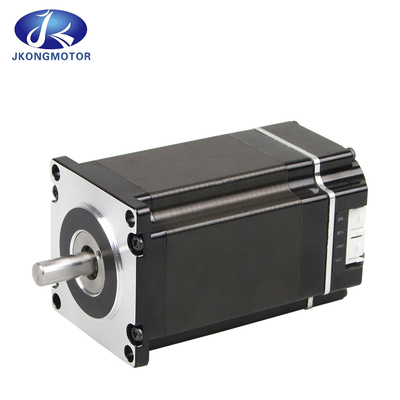

Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine

Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine

  • Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine
  • Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine
  • Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine
  • Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine
  • Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine
  • Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine
  • Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine
  • Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine
  • Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine
Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine
Product Details:
Place of Origin: China
Brand Name: Jkongmotor
Certification: CE, Rohs, Reach, ISO9001, ISO14001
Model Number: Integrated Stepper Servo Motor
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: USD20 - 50
Packaging Details: sample with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-35days
Payment Terms: T/T, Western Union, paypal, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Model: Nema 17 23 24 34 Integrated Stepper Motor Step Angle: 1.8degree
Current: 1A - 5A Or Customized Rated Torque: 0.2Nm - 3Nm
Encoder: 17Bit / 1000ppr Motor Length: Customized
Communication Methods: Pulse / RS485 / Canopen

Jkongmotor 42mm 57mm 86mm Integrated Stepper Motor Pulse-type Open-loop/ Closed-loop Stepper Motor Together with Driver
Product Description:

A motor with a controller or a driver, and an encoder, is an integrated motor. Integrated motors save wiring between the motor, controller and the control cabinet. By minimizing the machine complexity and installation efforts, the overall system cost is reduced
Characteristics of Integrated Dc Servo Motor
1. Compact: Integrated design of integrated drive motor Easy installation, small footprint, and simple wiring.
2. Multiple motion control modes: Supports the CiA402 standard protocol, including Relative position mode, absolute position mode, speed Mode, torque mode, and origin regression mode.
3. low-power consumption: Adopting low internal resistance MOS to ensure motor performance Excellent torque utilization while reducing motor power consumption And heat generation, effectively extending the service life of
the motor.
4. control mode: Supports pulse/RS485/CANopen.
5. Multi segment position speed function: With multi segment position function and multi segment speed function.
6. Safe and reliable: Driver built-in in place and alarm output signal Convenient for upper computer detection and control built-in Multiple alarm functions such as over differential, over undervoltage, and over temperature Can ensure the safe operation of processing equipment.




Jkongmotor has a wide range of micro motor production lines in the industry, including Stepper Motor, DC Servo Motor, AC Motor, Brushless Motor, Planetary Gear Motor, Planetary Gearbox etc. Through technical innovation and customization, we help you create outstanding application systems and provide flexible solutions for various industrial automation situations.

Features:
1. Adopting a new 32-bit M4+core with 120M or 240M main frequency
2. Stable torque characteristics from low to high speeds, with high speed and precision
3. Equipped with brake resistor interface to prevent damage to the electromechanical braking system
4. Wide speed range, low temperature rise, and high efficiency
5. Integrated motor and drive, compact size, simple wiring, and drive Good compatibility with the motor
6. Equipped with overcurrent, overvoltage, over temperature, and over differential protection functions
7. Configure a 17bit single turn absolute encoder

Communication method:
1. Pulse type
2. RS485 MOdbus RTU network type
3. CANopen network type

Protection level:
Waterproof type: IP30, IP54, IP65, optional

Usage:
Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese
medicine ingredient industry, etc

42mm Integrated Stepper Servo Motor:
Model Step Angle (1.8°) Phase Current (A) Rated Resistance (Ω) Rated Torque (N.m) Total body height L (mm) Encoder Control method (optional)
JKISS42-P01A 1.8 1.3 2.1 0.22 54 1000ppr/17bit pulse RS485 CANopen
JKISS42-P02A 1.8 1.68 1.65 0.42 60 1000ppr/17bit pulse RS485 CANopen
JKISS42-P03A 1.8 1.68 1.65 0.55 68 1000ppr/17bit pulse RS485 CANopen
JKISS42-P04A 1.8 1.7 3 0.8 80 1000ppr/17bit pulse RS485 CANopen

Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine 0

Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine 1Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine 2Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine 3









57mm Integrated Stepper Servo Motor:
Model step Angle (1.8°) phase Current (A) Rated Resistance (Ω) Rated Torque (N.m) Total body height L (mm) Encoder Control method (optional)
JKISS57-P01A 1.8 2 1.4 0.55 65 1000ppr/17bit pulse RS485 CANopen
JKISS57-P02A 1.8 2.8 0.9 1.2 80 1000ppr/17bit pulse RS485 CANopen
JKISS57-P03A 1.8 2.8 1.1 1.89 100 1000ppr/17bit pulse RS485 CANopen
JKISS57-P04A 1.8 3 1.2 2.2 106 1000ppr/17bit pulse RS485 CANopen
JKISS57-P05A 1.8 4.2 0.75 2.8 124 1000ppr/17bit pulse RS485 CANopen
JKISS57-P06A 1.8 4.2 0.9 3 136 1000ppr/17bit pulse RS485 CANopen
Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine 4
Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine 5Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine 6Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine 7



42mm Integrated Dc Servo Motor:
Model Power (W) Rated Voltage (VDC) Rated Current (A) Rated Speed (rpm) Rated Torque (N.m) Total height L (mm) Encoder Control method (optional)
JKIDS42-P01A 26 24 1.8 4000 0.0625 61 17bit Pulse RS485 CANopen
JKIDS42-P02A 53 24 3.3 4000 0.125 81 17bit Pulse RS485 CANopen
JKIDS42-P03A 78 24 4.5 4000 0.185 101 17bit Pulse RS485 CANopen
JKIDS42-P04A 78 24 4.5 3000 0.25 120 17bit Pulse RS485 CANopen

Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine 8

integrated servo motorintegrated servo motor and driveintegrated servo motor with brake

57mm Integrated Dc Servo Motor:

Model Power (W) Rated Voltage (VDC) Rated Current (A) Rated Speed (rpm) Rated Torque (N.m) Total height L (mm) Encoder Control method (optional)
JKIDS57-P01A 91 24/36 3.5 3000 0.29 101 17bit pulse RS485 CANopen
JKIDS57-P02A 140 24/36 5.4 3000 0.45 121 17bit pulse RS485 CANopen
JKIDS57-P03A 200 36/48 7.5 3000 0.64 141 17bit pulse RS485 CANopen

Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine 12

built in servo motorclearpath integrated servo motorjvl integrated servo motor

60mm Integrated Dc Servo Motor:

Model Power (W) Rated Voltage (VDC) Rated Current (A) Rated Speed (rpm) Rated Torque (N.m) Total height L (mm) Encoder Control method (optional)
JKIDS60-P01A 200 24 12 3000 0.64 94 17bit pulse RS485 CANopen
JKIDS60-P02A 400 48 11 3000 1.27 112 17bit pulse RS485 CANopen

Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine 16

ethercat integrated servo motorintegrated dc servo motorintegrated servo motor and controller

80mm Integrated Dc Servo Motor:

Model Power (W) Rated Voltage (VDC) Rated Current (A) Rated Speed (rpm) Rated Torque (N.m) Total height L (mm) Encoder Control method (optional)
JKIDS80-P01A 750 48/72 19/12 3000 2.4 155 17bit pulse RS485 CANopen
JKIDS80-P02A 1000 72 17 3000 3.2 175 17bit pulse RS485 CANopen

Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine 20

integrated servo motor functionintegrated servo motor for arduinointegrated servo motor and controller

Integrated Servo motor customized:

Professional dc motor manufacture in China

Company Profile:

Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine 25

Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine 26

Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.


Equipments Show:

Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine 27

Production Flow:

Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine 28

Package:

Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine 29

Certification:

Jkongmotor Nema23 2N.M Integrated Closed Loop Stepper Motor with Encoder Used for Cnc Machine 30
